BGA Rework Station R6860
The BGA Rework Station R6860 is a professional-grade, fully automated IC repair system built for high-precision reworking of motherboards, graphics cards, smart TVs, laptops, and advanced electronic components. Featuring a high-resolution optical alignment camera system, multi-zone heating technology, and touchscreen control, this station is trusted by chip-level service centers and repair professionals worldwide.
This machine is designed to handle complex rework operations including removal, reballing, replacement, and soldering of BGA, QFN, CSP, and SMD components. The system’s X/Y/Z axis motion and laser-assisted alignment system make it extremely accurate, reducing risk during delicate procedures.
What Is a BGA Rework Station?
A BGA rework station is a workspace system technicians can use to alter printed circuit boards with ball grid array (BGA) packaging and surface-mounted devices. These rework stations can also alter circuit boards with column grid array packaging, chip scale packages, quad flat packages, land grid arrays and other surface-mounted devices. BGA rework stations are also called surface-mounted technology rework stations or surface-mounted device (SMD) rework stations.
BGA rework stations have features that dictate the size of the circuit board that can be worked on and capabilities that determine the types and volume of jobs that can be done. Some BGA rework stations have a split-vision assist camera, while others do not. BGA rework stations that do not have the split-vision functionality are best for entry-level jobs, while rework stations with this function allow for more complex work. Some stations have automated functions, while others do not.
A BGA rework station allows technicians to do several different things, including refinishing, rework and repair. These rework stations empower technicians to remove defective parts, reinstall incorrectly placed parts, replace any missing parts and remove parts that are no longer working.
Product Specification :
| Power supply | AC 220V±10％ 50/60Hz |
| Total Power | Max 5100W |
| Heater Power | Upper Temp. Zone 1200w, Down Temp. Zone 1200w, IR Temp. (Pre. Heating)zone 2700W |
| Electrical Material | Driving Motor + PLC, Smart Temp. Controller, Color Touch Screen |
| Temperature Controlling | High Precision K-sensor (closed Loop),independent Temp. Controller |
| Optical Alignment | Using HD Camera Dual Colored View In 15″ Screen With Laser Position |
| PCB Adjustment | X , Y & R Angle Using Micrometer (± 0.01mm) |
| Locating Way | V Shape Slot, PCB Support Jigs Can Adjust, Laser Light Do Fast Centering And Position |
| PCB Size | Max 450×390mm Min 10×10 Mm |
| Applicable Chip | Max 80×80mm Min 1×1 Mm |
| Overall Dimension | L650×W630×H850mm |
| Temperature Interface | 1 Pcs |
| Weight Of Machine | 60KG |
| Accessories | 5 Nozzles , 1 Temperature Sensor , 4mm & 8mm Suction pen |
📍 WeFix.lk
📌 No. 12 Keyzer Street, Colombo 11, Pettah, Sri Lanka
📞 Call/WhatsApp: +94 757000028
☎️ Landline: +94 112 323 812
🌐 Website: https://wefix.lk
Important: Confirm Before Ordering
To ensure perfect compatibility and avoid returns, please send us a clear photo of your TV main board or TV model number sticker. Our technical team will verify compatibility within minutes.
Tested Products
Every board is tested before shipping
Warranty Support
30-day warranty on all products
Technical Assistance
Free installation guidance
Original Parts
Genuine components guaranteed
Related Products
Customers also viewed these parts
In Stock

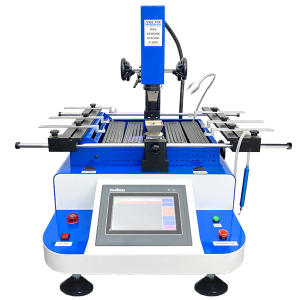

BGA Rework Station R5860
