BGA Rework Station R5860
The BGA Rework Station R5860 is a top-tier professional device engineered for high-precision chip-level repairs. Designed for technicians who handle motherboard IC repairs, CPU/GPU replacements, and advanced SMD soldering, this machine combines heat control, optical positioning, and automated operation in one powerful platform.
Equipped with a multi-zone heating system, the R5860 provides consistent, even heating across all layers of the PCB, preventing warping and cold solder joints. Its built-in HD optical alignment camera ensures pinpoint accuracy when placing BGA chips, making it perfect for reballing, replacing, or reflowing components on laptops, TVs, game consoles, and other complex boards.
What Is a BGA Rework Station?
A BGA rework station is a workspace system technicians can use to alter printed circuit boards with ball grid array (BGA) packaging and surface-mounted devices. These rework stations can also alter circuit boards with column grid array packaging, chip scale packages, quad flat packages, land grid arrays and other surface-mounted devices. BGA rework stations are also called surface-mounted technology rework stations or surface-mounted device (SMD) rework stations.
BGA rework stations have features that dictate the size of the circuit board that can be worked on and capabilities that determine the types and volume of jobs that can be done. Some BGA rework stations have a split-vision assist camera, while others do not. BGA rework stations that do not have the split-vision functionality are best for entry-level jobs, while rework stations with this function allow for more complex work. Some stations have automated functions, while others do not.
A BGA rework station allows technicians to do several different things, including refinishing, rework and repair. These rework stations empower technicians to remove defective parts, reinstall incorrectly placed parts, replace any missing parts and remove parts that are no longer working.
PRODUCT SEPCIFICATION:
| Operating Method | HOT AIR FLOW BASED |
| Total Power | 5100 Watt |
| Top Heater | 1200 Watt |
| Bottom Heater | 1200 Watt |
| IR Heater | 2700 Watt |
| Top Heater Movement | Right/Left, Frontward/backward, Rotate freely |
| Operating control | PLC Control With 7″ HMI HD Touch Screen |
| Profiles | De Solder ( Un Mount ), Solder ( Mount ), Lead Free Balls & With Lead Balls |
| Positioning | Intelligent Positioning, PCB can be Adjusted in X-Y direction with “6 points supports” V Grove PCB packet, Universal Fixtures |
| Temperature Control | K Sensor, Close Loop |
| Temperature Accuracy | ±2°C |
| PCB Size | Max 410 X 370 mm, Min 22 X 22 mm |
| BGA Chip | Max 80 X 80 mm , Min 2 X 2 mm |
| Accessories | 5 Nozzles , 1 Temperature Sensor , 1 Suction pen |
📍 WeFix.lk
📌 No. 12 Keyzer Street, Colombo 11, Pettah, Sri Lanka
📞 Call/WhatsApp: +94 757000028
🌐 Website: https://wefix.lk
Important: Confirm Before Ordering
To ensure perfect compatibility and avoid returns, please send us a clear photo of your TV main board or TV model number sticker. Our technical team will verify compatibility within minutes.
Tested Products
Every board is tested before shipping
Warranty Support
30-day warranty on all products
Technical Assistance
Free installation guidance
Original Parts
Genuine components guaranteed
Related Products
Customers also viewed these parts
Out of Stock

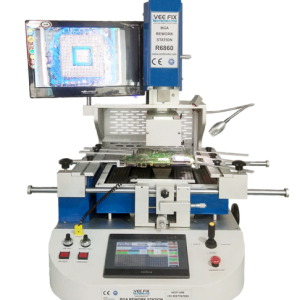

BGA Rework Station R6860
